**Title: Understanding the Tire Pressure Monitoring System (TPMS) on Your Bus: A Comprehensive Guide**

—

**Introduction**

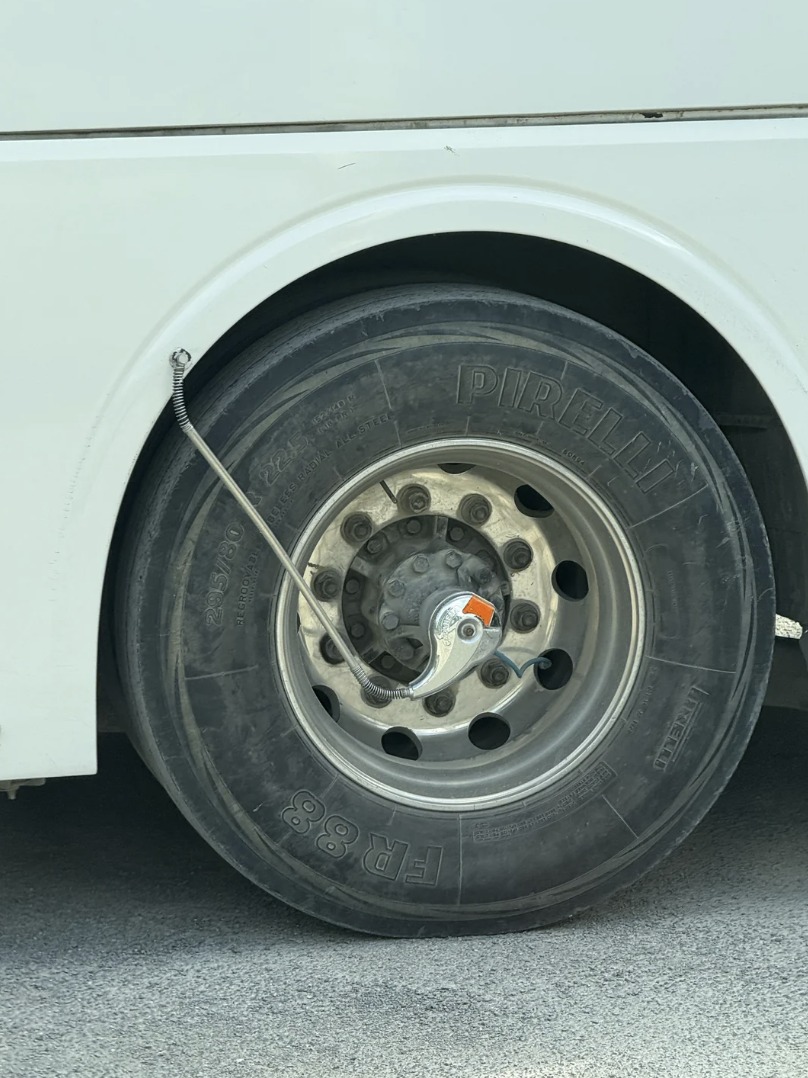

If you’ve noticed small, cylindrical devices attached to the valve stems of all tires on a large passenger bus, you might be curious about their purpose. These are part of the Tire Pressure Monitoring System (TPMS), a critical safety feature in modern buses. This article delves into the function, importance, and technology behind TPMS, particularly in the context of buses operating in the UK.

—

**What is a Tire Pressure Monitoring System (TPMS)?**

A Tire Pressure Monitoring System (TPMS) is an onboard system designed to monitor the air pressure inside the tires of a vehicle. It alerts the driver when tire pressure is dangerously low, which can lead to tire wear, reduced fuel efficiency, and increased risk of tire failure. In buses, TPMS is especially crucial due to the vehicle’s size, weight, and the safety of passengers.([landtransportguru.net][1])

—

**How Does TPMS Work?**

There are two main types of TPMS: Direct and Indirect.([fms-tech.com][2])

1. **Direct TPMS**: This system uses sensors mounted on each tire’s valve stem to measure the tire’s air pressure directly. The sensors transmit this data wirelessly to a central receiver inside the vehicle. If the pressure drops below a preset threshold, the system alerts the driver through a dashboard warning light or display. ([fms-tech.com][2], [porcsi.com][3])

2. **Indirect TPMS**: Instead of using physical sensors, this system estimates tire pressure by monitoring the rotational speed of each wheel using the Anti-lock Braking System (ABS) sensors. If a tire is under-inflated, its rolling radius decreases, causing it to rotate faster than properly inflated tires. The system detects this difference and alerts the driver. ([porcsi.com][3], [en.wikipedia.org][4])

—

**Importance of TPMS in Buses**

For buses, maintaining optimal tire pressure is vital for several reasons:

* **Safety**: Under-inflated tires are more prone to blowouts, which can lead to accidents.

* **Fuel Efficiency**: Properly inflated tires reduce rolling resistance, leading to better fuel economy.

* **Tire Longevity**: Maintaining correct pressure ensures even tire wear, extending their lifespan.

* **Cost Savings**: By preventing premature tire wear and improving fuel efficiency, TPMS can lead to significant cost savings for bus operators.([landtransportguru.net][1])

—

**TPMS in the UK Bus Fleet**

In the UK, the implementation of TPMS in buses is becoming increasingly common. For instance, manufacturers like Thomas Built Buses have integrated TPMS into their models, such as the Saf-T-Liner C2, to enhance safety and operational efficiency. ([landtransportguru.net][1], [stnonline.com][5])

Additionally, companies like ZF have developed systems like OptiTire, which offer real-time tire pressure monitoring and integrate with fleet management systems. These systems provide fleet managers with valuable data to make informed decisions about maintenance and operations. ([zf.com][6])

—

**Components of a Bus TPMS**

A typical TPMS setup on a bus includes:

* **Sensors**: Mounted on each tire’s valve stem, these sensors measure the tire’s air pressure and temperature.

* **Receiver**: Collects data from the sensors and transmits it to the vehicle’s onboard computer system.

* **Display Unit**: Located in the driver’s cabin, this unit shows real-time tire pressure information and alerts.

* **Antenna**: Facilitates wireless communication between the sensors and the receiver.
